QR Code

Keywords: QRCode Barcode, Quick Response Barcode, ISO/IEC 18004:2006

Anyone who needs to generate QRCode need look no further. The answer is Barcodesoft QR Code Font Package.

QR Code is also known as Quick Response Code. QR Code is a 2D matrix barcode symbology.

QRCode Matrix size ranges between 21 X 21 modules and 177 x 177 modules. Each module is either black or white.

QR Code is a well-designed barcode symbology that is able to encode both alphanumeric and conjunction characters.

QR Code is a two dimensional Japanese barcode that is able to encode 8-bit JIS characters and Kanji characters (Shift JIS characters). A Model 2 QR Code can hold up to 1500 Japanese Kanji characters.

The unique finder pattern and module placement algorithm makes QR Code symbol truly one of a kind in all barcode symbologies.

Barcodesoft QR Code printing solution used Reed Solomon algorithm for error checking and correcting.

QRCode has 4 different error correction levels to choose from : L07, M15, Q25 and H30. Higher level means less data capacity and less decoding error chance.

You can use either Barcodesoft QRCode Encoder or crUFLbcs.dll to encode your data on a Windows PC.

Barcodesoft QRCode Demo is fully functional even with the "Demo" watermark.

Please click the following URL for non-printable ASCII characters input.

If you are using a non-Japanese operating system, and want to scan a QR Code barcode symbol into your Windows application, please use Barcodesoft Keyboard Wedge Emulation program. It intercepts RS-232 port signals and emulates keyboard input.

Index Format Index Format
1 21 x 21 21 101 x 101
2 25 x 25 22 105 x 105
3 29 x 29 23 109 x 109
4 33 x 33 24 113 x 113
5 37 x 37 25 117 x 117
6 41 x 41 26 121 x 121
7 45 x 45 27 125 x 125
8 49 x 49 28 129 x 129
9 53 x 53 29 133 x 133
10 57 x 57 30 137 x 137
11 61 x 61 31 141 x 141
12 65 x 65 32 145 x 145
13 69 x 69 33 149 x 149
14 73 x 73 34 153 x 153
15 77 x 77 35 157 x 157
16 81 x 81 36 161 x 161
17 85 x 85 37 165 x 165
18 89 x 89 38 169 x 169
19 93 x 93 39 173 x 173
20 97 x 97 40 177 x 177

This is the pricing list of Barcodesoft QRCode font package
License Single User 10-User Site Corporate Developer Unlimited Developer
Price USD199 USD399 USD599 USD799 USD899 USD1799

Generate QRCode in Crystal Reports

1. Open your crystal report. Right click Formula Fields, choose "New..." from the context menu. Type in "qrcode1" in the Name textbox, then click "Use Editor".

qrcode create formula in crystal reports

2. After QRCode encoding process, even a short string might return more code words than you expect.
However, Crystal Reports allows no more than 254 characters in a formula field.
Therefore we have to split QRCode code words into different parts, and concatenate them in a Text Object before apply font BcsQRCode.

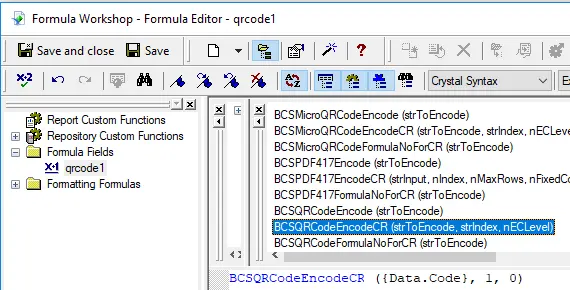

As for how many formula fields are needed, you use the following function to find out:
BCSQRCodeFormulaNoForCR({Data.Code}).

qrcode crystal reports UFL

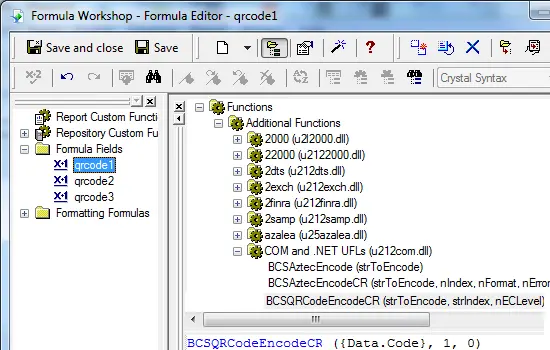

3. Create multiple formula fields as listed below if returned code words are more than 255. Then drag and drop them in sequence within the same Text Object.

qrcode create formula crystal reports

BCSQRCodeEncodeCR({Test.Data}, 1, 1)
BCSQRCodeEncodeCR({Test.Data}, 2, 1)
BCSQRCodeEncodeCR({Test.Data}, 3, 1)

The first parameter in the formula field is string to encode.
The second parameter in the formula field is index.
The third parameter in the formula field is error correction level. Its value ranges between 1 and 4 that represents L07, M15, Q25 and H30 separately. When set to default value 0, it stands for M15 error correction level.

For detailed explanations of each parameter, please refer to user's manual.

qrcode crystal reports UFL formula field

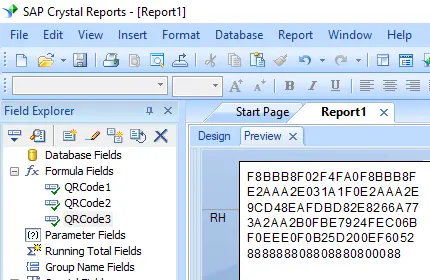

You will see some hex codes in your report. Don't worry! You have NOT applied QRCode font typeface yet.


4. Right click Text Object and choose "Format Object" from context menu. Then choose "BcsQRcode" as font typeface for the Text Object.

QRCode barcode font crystal reports

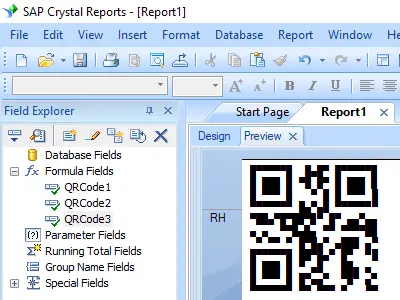

5. Click OK button. You will see QRCode in your report.

QRCode barcode crystal reports

Generate QRCode in MS Excel

1. Start Microsoft® Excel® first.

If you are using Excel 2000 or 2003, click menu ===> Tools ==> Macro ===> Security. Choose Low security level.
QRCode Macro Security

If you are using Excel 2007 / 2010 / 2013 / 2016 / 2019, click the Microsoft Office Button.
Office 2010 button Office 2016 button Office 2019 button
Then click Excel Options, choose Trust Center. In the Macro Settings category, under Macro Settings, choose "Enable all macros" as shown below.

QRCode Macro Setting

2. Press ALT + F11 to open Microsoft® Visual Basic editor.
QRCode VBA

3. From Visual Basic editor, choose menu Tools ===> References. It will popup a dialog. Click Browse button and choose cruflbcs.dll from your working folder.
Usually it's under C:\Program File\CommonFiles\Barcodesoft\Fontutil folder.
Click the checkbox beside crUFLBcs 4.0 Type Library as shown below. Then click OK button.

QRCode add reference

4. Press Ctrl+M, it will popup a dialog, choose barcodesoft.bas under C:\Program File\CommonFiles\Barcodesoft\Fontutil folder. Then click "Open".

If you don't find barcodesoft.bas, please download it from QRCode.
QRCode import vba

5. Close Visual Basic and go back to your spreadsheet. Now, you can use the following macro to encode data: qrcode. When you have lots of data to process, you can just copy and paste the QRCode macro to the whole column / row of data. All your QRCode will be ready immediately.

=qrcode(xxx)

Please use cell reference to replace xxx in the formulas as shown below.
QRCode Excel macro

6. Right click Cell B1, choose Format Cell from context menu as shown below.
QRCode Excel macro

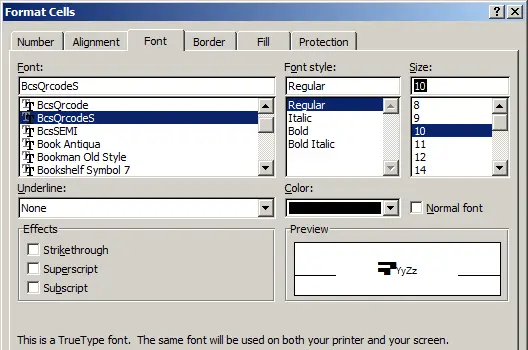

7. Click Font tab and choose BcsQRCodeS as font typeface as shown below.
QRCode typeface excel

8. Click Alignment tab and select "wrap text" as shown below.
QRCode alignment excel

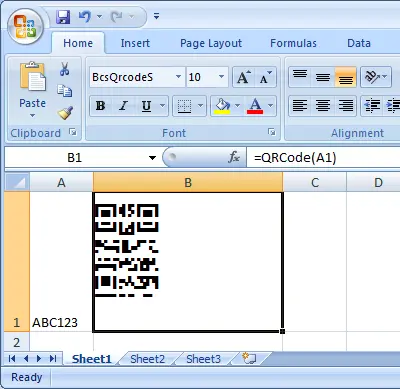

9. Click OK and you should be able to see QRCode barcode in your Excel spreadsheet now. There might be a small gap between different lines of QRCode. However, this won't be an issue when you scan the printed QRCode because bcsDatamatrixS true type font is designed to reduce this gap to mininum.
QRCode excel


Generate QRCode in MS Access

3. Start Microsoft® Access® first.

If you are using Access 2000 or 2003, click menu ===> Tools ==> Macro ===> Security. Choose Low security level.
QRCode Access Macro Security

If you are using Access 2007 / 2010 / 2013 / 2016 / 2019, click the Microsoft Office Button.
Office 2010 button Office 2016 button Office 2019 button
Then click Access Options, choose Trust Center. In the Macro Settings category, under Macro Settings, choose "Enable all macros" as shown below.

QRCode Access Macro Setting

4. Press ALT + F11 to open Microsoft® Visual Basic editor.
QRCode Access VBA

5. From Visual Basic editor, choose menu Tools ===> References. It will popup a dialog. Click Browse button and choose cruflbcs.dll from your working folder.
Usually it's under C:\Program File\CommonFiles\Barcodesoft\Fontutil folder.
Click the checkbox beside crUFLBcs 4.0 Type Library as shown below. Then click OK button.

QRCode add reference

6. Press Ctrl+M, it will popup a dialog, choose barcodesoft.bas under C:\Program File\CommonFiles\Barcodesoft\Fontutil folder. Then click "Open".

If you don't find barcodesoft.bas, please download it from QRCode.
QRCode import vba

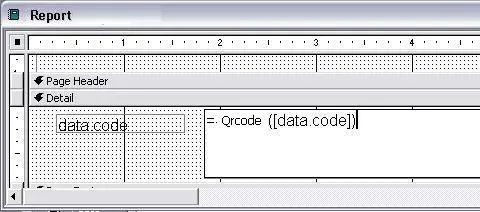

7. Close Visual Basic and go back to your Access database. Now, create a report in Design view and type in one of the following macros in the field where you want to show QRCode barcode before apply font typeface:
=qrcode([data.code])

Please notice that 'data' is the Table name, 'code' is the Field name.

QRCode barcode excel macro

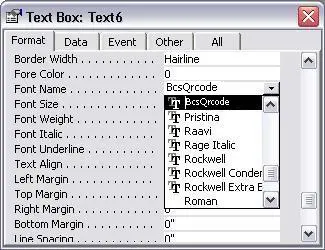

8. Right click the field you want to display QRCode barcode. Choose Properties from context menu. Apply one of the appropriate font typefaces to the field, such as BcsQRCode.

QRCode import vba
