interleaved-2-of-5 Barcode
Generate interleaved-2-of-5 Barcodes
Implement seamlessly across Crystal Reports, MS Excel, and MS Access
For high-density numeric barcoding, Barcodesoft’s Interleaved 2 of 5 fonts deliver a complete, flexible solution—offering seven aspect ratios from XXS to XXL, with or without human-readable text, and supporting every major format from TrueType to WOFF. While a modulo 10 check digit is optional, their built‑in encoder handles the calculation seamlessly, and the only catch in the demo is a simple watermark—making it a practical, no‑nonsense choice for logistics and beyond.
Overview
Anyone who wants to generate 'Interleaved 2of5 barcode' has found a perfect solution. Barcodesoft 'Interleaved 2of5' software is what you need.
'Interleaved 2of5 barcode' is one of the most widely used barcode symbology. It is developed upon 'standard 2of5 barcode' for higher data capacity.
'Interleaved 2of5' encodes numbers. Logistics industry use 'Interleaved 2of5 barcode' a lot.
A modulo 10 check digit is optional for 'Interleaved 2of5 barcode'. Checksum calculation is the same as code25.
When you use Barcodesoft 'Interleaved 2of5' to print barcode, please use the encoder to calculate check digit.
There are 14 'Interleaved 2of5 barcode' fonts in the package, as listed below. Each font shows its aspect ratio by font name. Those fonts with “Hr” in their names have human readable text underneath the barcode.
For example, I25MHr means ‘medium aspect ratio’, with human readable text.
I25XXL means “XXL aspect ratio, no human readable text”.
Barcodesoft 'Interleaved 2of5 barcode' Demo version has a “Demo” watermark.
Barcodesoft Interleaved 2of5 barcode fonts are available in truetype, PostScript, PCL, SVG, Open Type (eot), and Web Open Font Format (woff / woff2). Users can embed MSI fonts into Adobe PDF files.
Here is the list of Barcodesoft Interleaved 2of5 Barcode Fonts
Interleaved 2 of 5 barcode font mapping table
| Aspect Ratio | With Human Readable | No Human Readable |
|---|---|---|
| XXS | I25XXSHr | I25XXS |
| XS | I25XSHr | I25XS |
| S | I25SHr | I25S |
| M | I25MHr | I25M |
| L | I25LHr | I25L |
| XL | I25XLHr | I25XL |
| XXL | I25XXLHr | I25XXL |
Barcodesoft Interleaved 2 of 5 Barcode Fonts Pricing
| License Type | Single | 5-User | 10-User | Site | Corporate | Dev | 5-Dev | 10-Dev | Unlimited |
|---|---|---|---|---|---|---|---|---|---|
| Price | CAD299 | CAD399 | CAD599 | CAD799 | CAD999 | CAD1199 | CAD1399 | CAD1999 | CAD2999 |
Generate Interleaved 2 of 5 Barcode in Crystal Reports
How to generate an Interleaved 2 of 5 barcode in Crystal Reports?
To generate an Interleaved 2 of 5 barcode in Crystal Reports, create a new formula field using the BCSLinearI25 function from the Barcodesoft UFL library. Pass your database fields as arguments, place the formula field on your design view, and assign the I25MHr font.
-
Step 1: Determine the bitness of SAP Crystal Reports and register the DLL
Determine the bitness of your SAP Crystal Reports version. SAP Crystal Reports 2008 to 2016 are 32-bit versions, while SAP Crystal Reports 2020 and 2025 are 64-bit versions.
For 64-bit Crystal Reports (2020 / 2025):
Run Command Prompt as administrator and execute the following:
cd "C:\Program Files\Common Files\Barcodesoft\FontUtil"
%systemroot%\System32\regsvr32.exe cruflbcs_x64.dll
For 32-bit Crystal Reports (2008–2016):
Run Command Prompt as administrator and execute the following:
cd "C:\Program Files\Common Files\Barcodesoft\FontUtil"
regsvr32.exe cruflbcs.dll
-
Step 2: Create a new Itf25 formula field
Open your Crystal Reports layout. In the Field Explorer, right-click on Formula Fields and select New... from the context menu. Enter the name "Itf25" in the Name text box, and then click the Use Editor button.
-

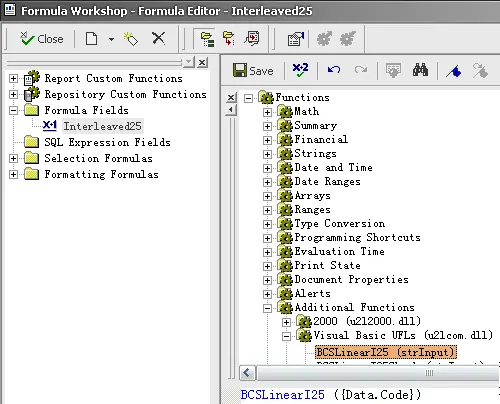

Step 3: Locate the Barcodesoft Interleaved 2 of 5 function
In the Formula Workshop, navigate to the "Additional Functions" directory and double-click the
BCSLinearI25function under the "Visual Basic UFLs" node.
-
Step 4: Use your database field as a parameter
Specify your target database field as the primary string parameter within the parentheses of the Interleaved 2 of 5 formula. Click the Save button to validate and save your new formula logic configuration.
-

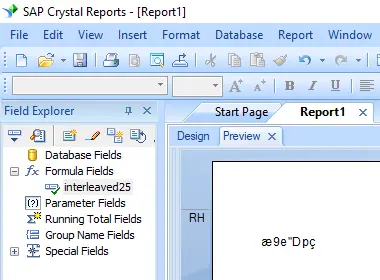

Step 5: Insert the Itf25 formula field into your report design
Drag your newly saved
Itf25formula field from the Field Explorer and drop it onto the grid area of the design view where you want the Itf25 barcode to appear.
-

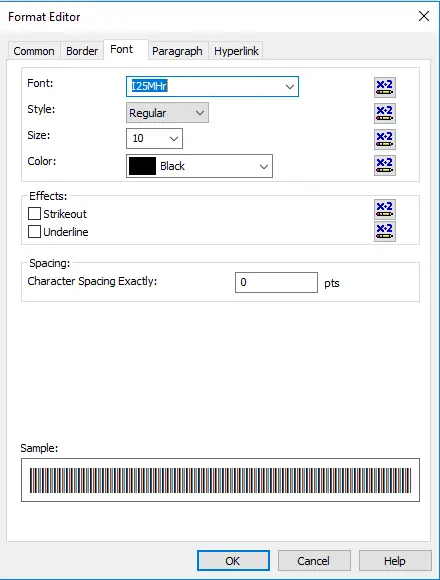

Step 6: Assign the I25MHr font
Right-click the placed formula text block object in your design view and select Format Field from the context menu. In the font customization tab, select "I25mHr" from the font family drop-down list.
-

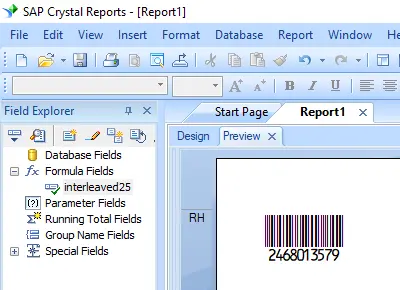

Step 7: Verify the generation of the Interleaved 2 of 5 barcode
Click the OK button to apply the changes. The placeholder text strings will immediately be converted and rendered as an active, readable Interleaved 2 of 5 barcode in your report preview layout.
