Aztec is a 2D barcode symbology. It's a smart and simple solution to use Barcodesoft DLL and BcsAztec true type font to generate Aztec barcode.

With Barcodesoft Aztec barcode package and Microsoft® Office, it is very easy to print Aztec from your Excel spreadsheet and desktop printer.

1. Copy true type font bcsAztec.ttf to your c:\Windows\Fonts folder.

2. Copy cruflbcs.dll and barcodesoft.bas to "C:\Program Files\Common Files\Barcodesoft\FontUtil" folder.
Open DOS prompt as administrator.
Please go to the following folder
CD C:\Program Files\Common Files\Barcodesoft\FontUtil
Type in the following DOS command to register crUFLbcs.dll
regsvr32 crUFLbcs.dll
Aztec barcode

3. Start Microsoft® Excel®.

If you are using Excel 2000 or 2003, click menu ===> Tools ==> Macro ===> Security.
Choose Low security level.
Aztec barcode

If you are using Excel 2007 or above, click the Microsoft Office Button Aztec barcode
Then click Excel Options, choose Trust Center. In the Macro Settings category, under Macro Settings,
choose "Enable all macros" as shown below.

Aztec barcode



4. Press ALT + F11 to open Microsoft® Visual Basic editor.
Aztec barcode




5. From Visual Basic editor, choose menu Tools ===> References. It will popup a dialog. Click Browse button and choose cruflbcs.dll from your working folder.
Usually it's under C:\Program File\CommonFiles\Barcodesoft\Fontutil folder.
Click the checkbox beside crUFLBcs 4.0 Type Library as shown below. Then click OK button.
Aztec barcode




6. Press Ctrl+M in Visual Basic editor, it will popup a dialog, choose barcodesoft.bas under
C:\Program File\CommonFiles\Barcodesoft\Fontutil folder. Then click "Open".

Aztec barcode vba



7. Close Visual Basic editor and go back to your spreadsheet.
You can use the following macro to encode data: Aztec. When you have lots of data to process, you can just copy and paste the macro to the whole column and all data will be encoded in seconds.
=Aztec(xxx)

Please use cell reference to replace xxx in the formulas as shown below.
Aztec macro



8. Right click Cell B1, choose Format Cell from context menu as shown below.
Aztec context menu

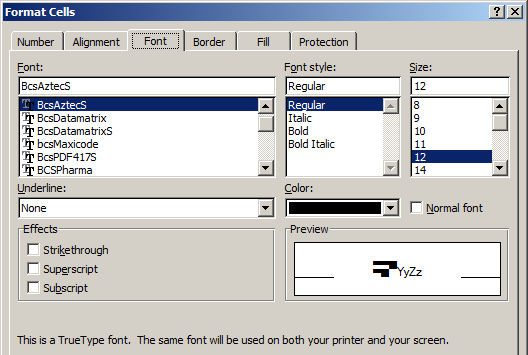

9. Click Font tab and choose BcsAztecS as font typeface as shown below.
excel Aztec font

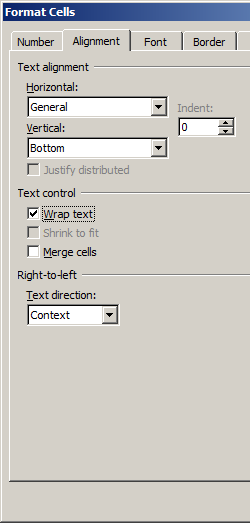

10. Click Alignment tab and select "wrap text" as shown below.
Aztec alignment

Click OK and you should be able to see Aztec barcode in your Excel spreadsheet now. There might be a small gap between different lines of Aztec barcode. However, this won't be an issue when you print it out and scan because bcsAztecs true type font is designed to reduce this gap to mininum.
Excel Aztec barcode
