Print MaxiCode in Crystal Reports

To print MaxiCode barcode in Crystal Reports, it's a smart and simple solution to use Barcodesoft Maxicode UFL (User Function Library) and MaxiCode barcode fonts.

1. Install MaxiCode demo on your computer.

2. Open DOS prompt. If you are using Windows 10 or Windows 7, please Open DOS prompt as administrator.
Please go to the following folder
CD C:\Program Files\Common Files\Barcodesoft\FontUtil
Type in the following DOS command to register crUFLbcs.dll
regsvr32 crUFLbcs.dll
maxicode crystal reports DLL DOS registration

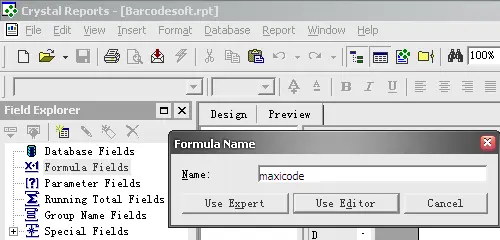

3. Open your crystal report. Right click Formula Fields, choose "New..." from the context menu. Type in "maxicode" in the Name textbox, then click "Use Editor".

maxicode create formula crystal reports

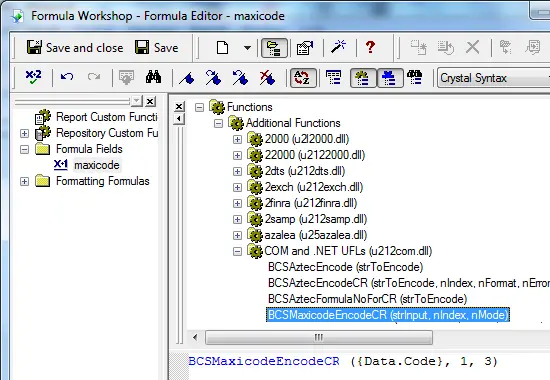

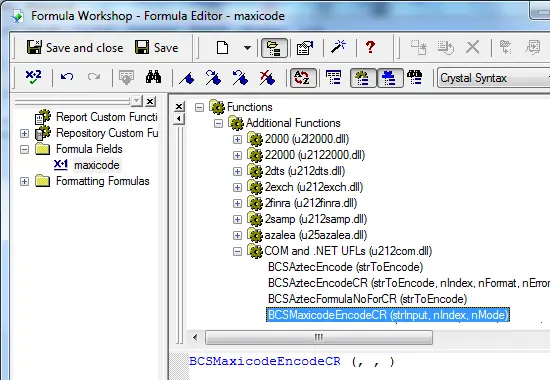

4. Double click "BCSMaxicodeEncodeCR" function from Visual Basic UFLs list as shown.

maxicode crystal reports UFL

Then type in the database field as first parameter.
The second parameter is a sequence number starting from 1, or you can set it to zero.
The third parameter is Maxicode mode. Mode is only valid between 2 and 6.

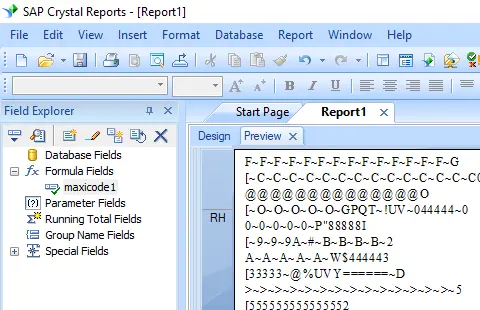

BCSMaxicodeEncodeCR({Data.Code}, 1, 3)
BCSMaxicodeEncodeCR({Data.Code}, 2, 3)
BCSMaxicodeEncodeCR({Data.Code}, 3, 3)

maxicode crystal reports UFL

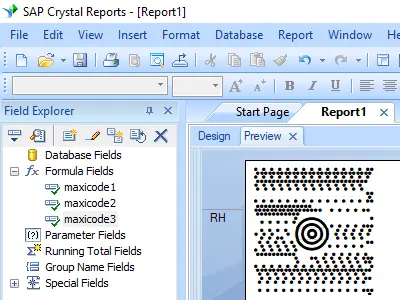

5. Right click Text Object and choose "Format Object" from context menu. Then choose "BcsMaxicode" as font typeface for the Text Object. You will get MaxiCode in your report.
